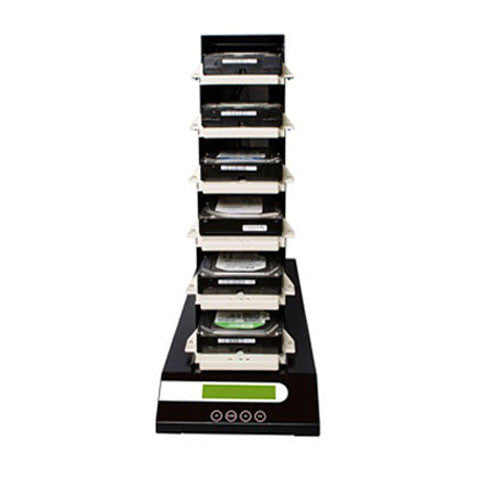

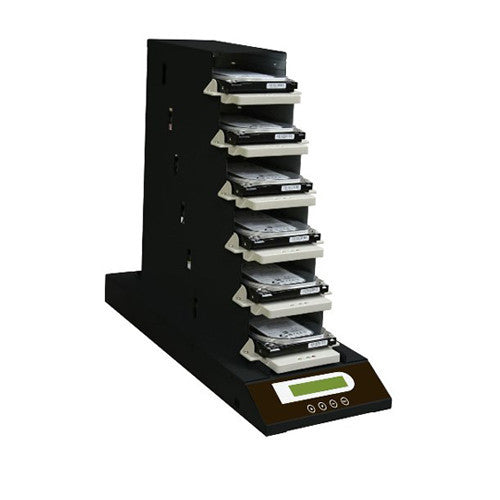

SySTOR Expandable SATA Hard Disk Drive Daisy Chain Duplicator / Copier / Sanitizer / Eraser (138MB/sec) - (5HDD-DC)
Call us at Toll Free # 866-817-4094
- Flexible productivity, use one station for 5 targets copy or link multiple station up to 59 targets.
- High performance up to 138MB transfer speed per second.
- Support up to 6TB capacity of Hard disk drive.
- Features high secure level of data sanitization : DoD erase and Secure Erase
- Support 3.5”/2.5” SATA/SSD, mSATA, eSATA and iVDR interface.
- iSecuLog statistic report records all tasks details for better production management and yield analysis
Impeccable efficiency With up to 138MB/s transferring bandwidth, it is the greatest for industrial use. Each SATA interface is independent, no matter how many targets you would like to duplicate, the speed stays the same and doesn’t decline. 138MB per second is far beyond PC-based duplicators.
Duplicate plenty kinds of OS Linux, Unix, Windows, Macintosh, etc. are all supported.
3 different kinds of duplication modes are supported Quick Copy, All Partitions, and Whole HDD copy. If you have a big capacity 2TB HDD which only has 200GB data inside, Quick Copy can help reduce the duplication time from 5.6 hours to 33 minutes. It will not copy the empty space.
Quick Copy Mode This mode can identify the HDD formats of FAT16/32, NTFS, and Linux(EXT2/EXT3/EXT4). It will only copy the data and system contained area, which enhances the copying efficiency very much.
Free-Chain To connect up to 10 units of duplicator that’s able to duplicate 59 targets at the same time! Of course, the speed doesn’t decline.
Ultra High Speed Data "Compare" Function The very special hardware bit-for-bit "Compare" function is the most secure way to 100% guaranteed accuracy of data duplication. It takes the same speed as copying. There is no other duplicator that can do such a performance so fast and accurate
The DoD Erase Function Comply with the U.S. Department of Defense's standard of erasing. It is important to make sure the data inside the disregarded HDD will not be retrieved and can be safely transferred.
iSecu Log The operation info including operating progress, speed, and even the capacity, model name, S/N of HDD are ALL recorded! That means you can look at all the record when you need to track for any issue. It’s so much convenient for trouble shooting, work responsibility clarification, exporting testing report, work management.
It can save up to 130,000 piece of log. One instruction onto one HDD is recorded as one piece of log. (e.g. duplication from 1 HDD to 21 targets will be recorded to 21 pieces of log)
PC-Monitoring PC-link is absolutely perfect for MONITORING the work progress during operation. It shows all the information, including writing speed, operation time, percentage of completion, etc. for EVERY PORT, which is a powerful tool for sorting out the lagging writing HDD and keeping the operation in most efficient. All the information you need will be shown on screen of PC.
1. It’s able to monitor duplication status from PC while duplicators are connected to it.
user can see the duplication speed of every port by. “Event Log”.
Auto power control system When the duplicator stop executing any function, the machine will automatically cut off the power of each port to protect the HDD from damage during removal from the duplicator. The power of each port will only be supplied when the operation is on.
Excellent heat radiation Platform design helps better heat radiation and better operation stability.
Stand-alone operation There are two modes of operation, stand-alone and PC-link operation. User can choose either mode to satisfy different need. Stand-alone is excellent in simplifying operation and very user-friendly (operating on four buttons of duplicator would complete all the jobs).
Easy and Friendly User Interface Very simple and easy to use. It doesn't require a high level of expertise for operation. Easy to maintain with low cost.
Easy understanding LED indication Have you ever bothered by user-unfriendly LED indication? We’ve considered everything for you. The clear LED indication: Pass→ green light; Fail→ red light. Nice and easy.
|Model Target||1-5 up to 59 HDD|
|Control Button||4 push buttons (Forward, Backward, OK, Esc)|
|Compatible Interface||mSATA, eSATA, 2.5" SATA, 3.5" SATA, CF, iVDR, 2.5" IDE, 3.5" IDE|
|Erase Modes||Quick Erase, Full Erase, DoD erase|
|Duplication Modes||1. Quick Copy (Systems & Files)
2. All Partition
3. Whole HDD
|Support Format||1.Systems & files: FAT,NTFS,Linux (ext2, ext3, ext4), GPT,Dynamic HDD
2.All partition/Whole HDD: All formats
|Support Language||English, Japanese|
|Power Supply||12V, 9A|
|Safety||CE, FCC, ROHS|
1 Year Parts Warranty
