3.5" IDE to SATA Hard Drive Adapter (P1004A)
Call us at Toll Free # 866-817-4094

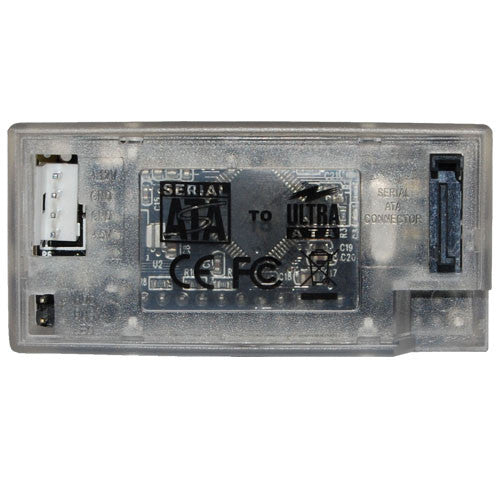

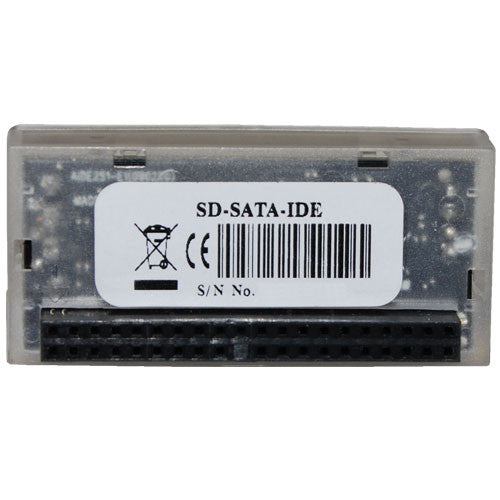

This adapter only works on flatbed type duplicators and will not fit into tower type duplicators.Attach this Mini dongle SATA converter board to the back of your EIDE, IDE, ATAPI, ATA/33, ATA366, Ultra ATA/100, Ultra ATA/133 Hard Drives and instantly turn them into a new Serial ATA Hard Drives that meets Serial ATA 1.5Gb/s interface standard.
The device mounts to the back of your EIDE, IDE, ATAPI, ATA/33, ATA366, Ultra ATA/100, Ultra ATA/133 device converting SATA command through Serial ATA interface from the interface host (On Board/ Add-on Serial ATA controller), decoding SATA command and converting them to Parallel ATA command. Responses from the device are deciphered, proceed and convert back to SATA protocol and send to the host.
Turn ALL of your old HDDs into Next Generation High Speed Serial ATA Devices.
Serial ATA interface supports high transfer, boosts transfer rate up to 1.5Gb/s (150 MB/s) Plug-N-Play Easy Installation, no driver required. Supports SATA RAID setup (1 SATA converter board for each device)
(*)Please set the IDE drive to Master mode before connection the IDE drive.
*** NOT compatible with 2.5****
- Compliant with Serial ATA 1.0 specification
- Silicon Image (Sunplus) Standalone Parallel ATA To Serial ATA Device Bridge Chip
- Support ATAPI HDD
- Compatible with Ultra ATA 100/133
- Direct attach on device converter
- Data transfer rate up to 1.5 Gbps (150 MB/s)
- No driver is needed
- Supports 3.5" IDE HDD to 3.5" IDE HDD
3.5" IDE HDD to 3.5" IDE HDD Hard Drive Adapter can be use with the following:
